Description

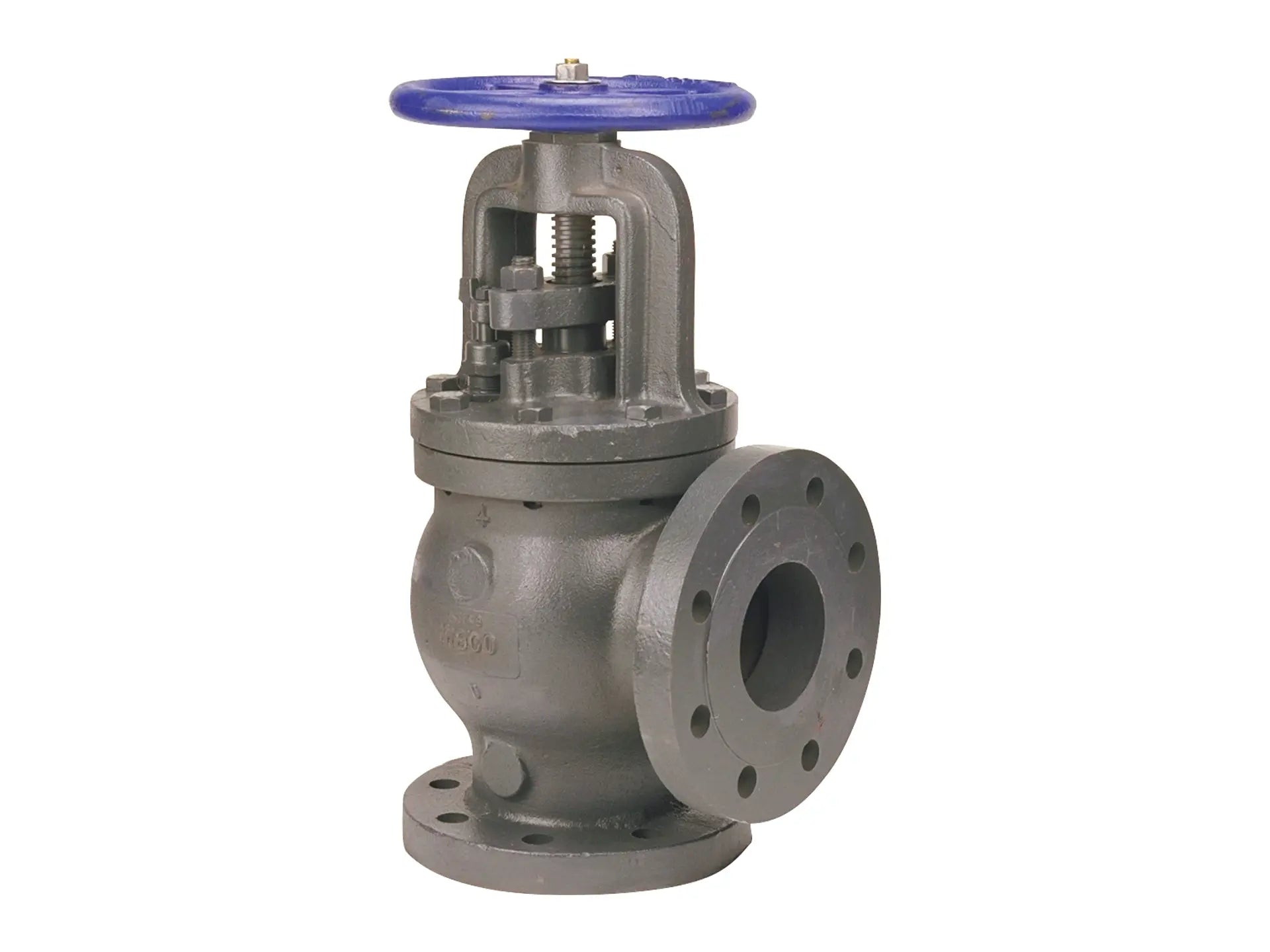

4″ Class 250 flanged steam stop-check cast iron angle valve with bronze trim that is rated for 250 psi/17.2 bar saturated steam to 406°F/207°C. This valve features a bolted bonnet and renewable seat and disc. Use in U.S. drinking water applications is prohibited after January 3, 2014.
Features
- 250 psi/17.2 bar saturated steam to 406°F/207°C
- 500 psi/34.5 bar non-shock cold working pressure
- Bronze mounted trim
- Angle pattern
- Bolted bonnet
- Renewable seat and disc
- Class 250 flanged end connections
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-85
