Description

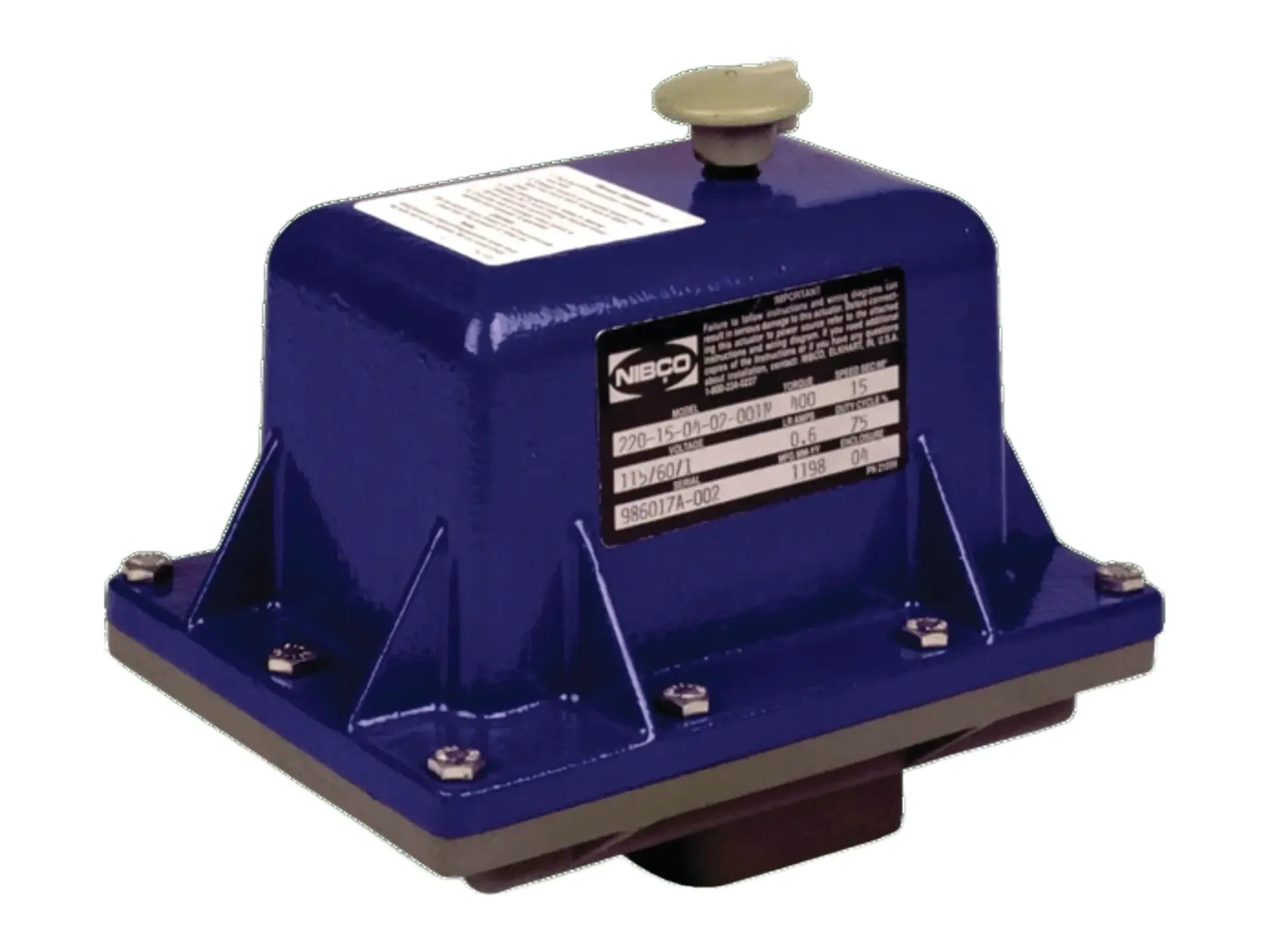

220 VAC, 30-second, NEMA 7, compact electric actuator with heater and thermostat installed, permanently-lubricated steel gear train, hardened steel drive shaft, single phase capacitor run motor with thermal overload protection, motor brake, and declutchable manual override. This actuator is rated at 30% duty cycle.
Features
- Heater and thermostat installed
- Permanently lubricated steel gear train
- Hardened steel drive shaft
- Rated at 30% duty cycle
- 4, 10, 15, or 30-second cycle
- Single phase capacitor run motor with thermal overload protection
- Motor brake standard on 4 and 10-second cycle units
- Declutchabale manual override
- Two 1/2″ NPT conduit entrances
- Temperature range -40°F to +140°F
- Torque 150-600 in/lb
- Voltage 24 VDC, 110, 220 VAC
- Enclosures CSA certified to NEMA-4, 4X and 7
- Female ISO 5211 mount and drive
