Description

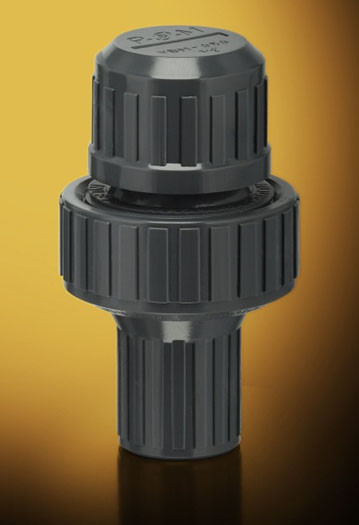

Series VBM Vacuum Breakers are molded of Geon® type 1, grade 1, PVC(Polyvinyl Chloride), Corzan® CPVC, Glass-filled Polypropylene and Kynar® PVDF in pipe connection sizes 1/2″, 3/4″ and 1″.
Diaphragms are of EPDM or FKM (Viton). Fasteners are not used on Series VBM.
Outlet connection is shipped with standard dust cap. Cap is removable for applications where pipe connection is desired due to location, potential hazard, etc. The outlet connection is identical to the connection on the system side of the valve.
