Description

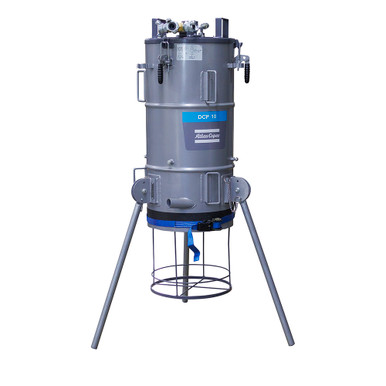

PNEUMATIC DUST COLLECTOR
New, Atlas Copco DCP 10 dust collector with multi-tool attachment. Heavy steel construction. Unit does not require power, only a reliable source of compressed air. For indoor and outdoor use. Intended for use with hand-held rock drill or breaker with proper attachments. The ejector tube is located in a well protected position inside the filter and the housing-unit. Unit has three folding legs that need to be deployed on a flat surface before use. The rock cuttings and dust particles that are sucked into the dust collector are collected into a sack. The sack is secured around the cyclone part of the filter unit by the sack holder.
SPECIFICATIONS
- Brand Atlas Copco
- Model Number DCP 10
- Air Consumption at 87 psi (6 bar) 23.3 to 25.4 cfm (11 to 12 l/s)
- Suction Hose 1-1/2″ (38mm)
- Filter Surface Area 21-1/2 sq. ft. (2 m²)
- Collection Sack, Flat Dimensions 22″ x 27.5″ (560mm x 700mm)
- Diameter of Housing Unit 14-3/8″ (365mm)
- Height of Housing Unit 30″ (760mm)
- Height above ground 51-1/2″ (1310mm)
- Shpg in Two Boxes
First Box: 29 lbs. Dimensional (20 lbs. Actual)
Second Box: 117 lbs. Dimensional (87 lbs. Actual)
Total weight: 146 lbs. Dimensional (107 lbs. Actual)
