Description

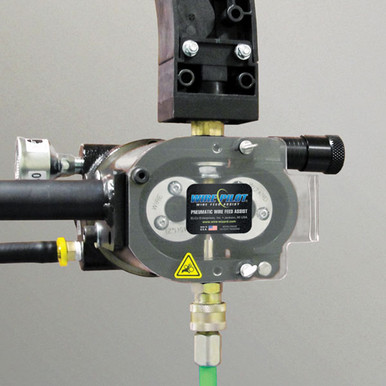

This item has been discontinued.Please see item PFA-LM-20 for the newest version.The Wire Pilot Pneumatic Feed Assist (PFA) provides an economical way to help your wire feeder move wire through the conduit in applications where the wire must have minimal friction, travel a long distance or where the workload on the wire feeder must be reduced. When combined with Guide Modules, it allows the ultimate flexibility when it comes to wire delivery and wire packages can be located 150 ft (46m) or more away from the arc. Using only compressed air, this unit easily relieves several pounds of pulling force from the feed motor. Adjustable torque setting prevents bird nesting,” commonly occurring in aluminum or light wire applications. Compatible with ferrous & non-ferrous wire. Patented design. Drive rolls sold separately.Eliminates drag coefficient inside the conduitProvides Push-Pull system to get wire from source to the feeder in other words, it functions as a slave to the wire feeder, providing a constant push on the wire to eliminate skid fiction and drive roll slippageExtends conduit life & increases arc-on timeEnables longer conduit runs (150 ft/46m+), enabling centrally located wire packages as well as allowing the use of bulk wire in many applications that would normally require small spoolsPrevents burn backs caused by wire feeding problemsSolves many feeding issues with large diameter wire used for SAW weldingIncludes filter/regulator/lubricatorIncludes inlet/outlet adapters that connect to A-5 style quick disconnects (sold separately)
View the Spec Sheet for This Item
View the Operation Manual for This Item
