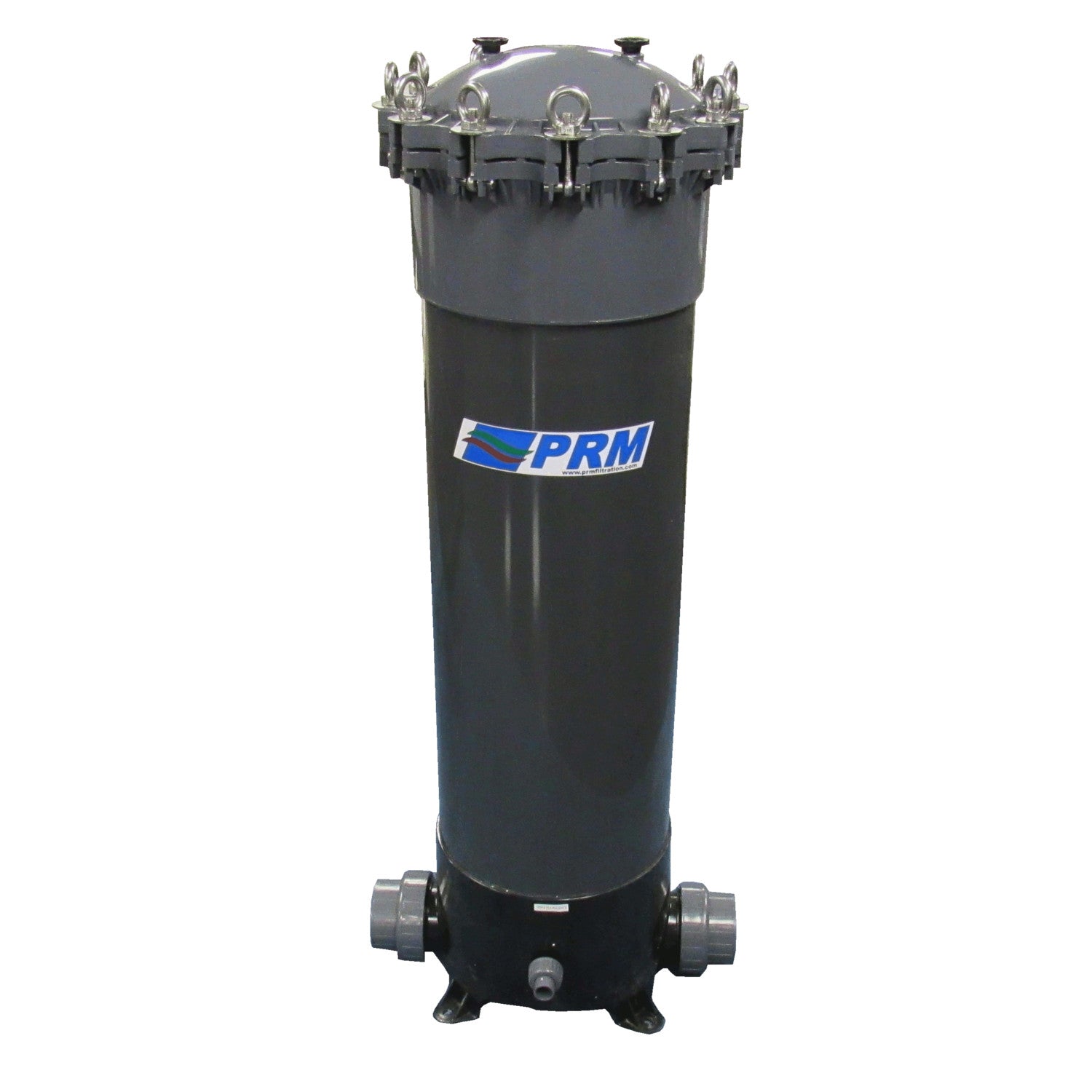

PRM PVC MULTI-CARTRIDGE FILTER HOUSING, 3 INCH NPT INLET/OUTLET – 85 PSI MAX PRESSURE
PRM offers high quality PVC constructed water filter housings for industrial filtration applications. Element sizing can be as low as 0.1 micron where extreme fine filtration is required. These housings offer an economical solution where protection of downstream or point of use equipment is required. Housings are kept in inventory for quick shipping.
Features:
- PVC construction for corrosion resistance
- Uses (9) 40” Cartridge Filters
- Flow Capacity up to 216 GPM
- 3” Socket Inlet and Outlet Connections
- (2) 1/4” Ports in top cover, for pressure gauge (not included) and venting
- Silicone Gaskets
- Temperature Range: 41°F – 104°F
- Max. Operating Pressure: 85 psi
- 1/2” Drain
- 316 Stainless Steel Lid Retention Hardware with 316 SS Bolts
- Filtration for sediment, silt, odor/taste or organic compounds
Spare Parts for this Housing (BFCARTHPCF9DC4BX)
Older generations of this housing utilize a hold down plate system utilizing threaded rods and tighteners. Newer housings feature a hold down plate system using a PVC spacer and wing nuts.
Replacement EPDM O-Ring (BFPCHPTOREPDM1200X)
Replacement Lid (BFPCHPTLID1600X)
Replacement Inlet/Outlet Connectors (BFPCHINOUTCON300X)
Replacement Knob (BFPCHPVCKNOBX)
Replacement Male Adapter (BFPCHPVCMAX)
Replacement Drain Port Adapter (BFPCHPVCDRAINADX)
Replacement Eye Bolt Assembly (BFPCHPT316SSEBA9X)
First Generation Hold Down Parts
Replacement Threaded Rod (BFPCHPT40RODX)
Replacement Hold Down Plate (BFPCHPTHDP16009X)
Replacement Tightener (BFPCHPVCFASTX)
Second Generation Hold Down Parts
Replacement Hold Down Plate – Version 2 (BFPCHPTHDP16009V2X)
Replacement PVC Spacer (BFPCHPTSPACER16009X)
Replacement Wing Nut (BFPCHPTWINGNUTX)
