Description

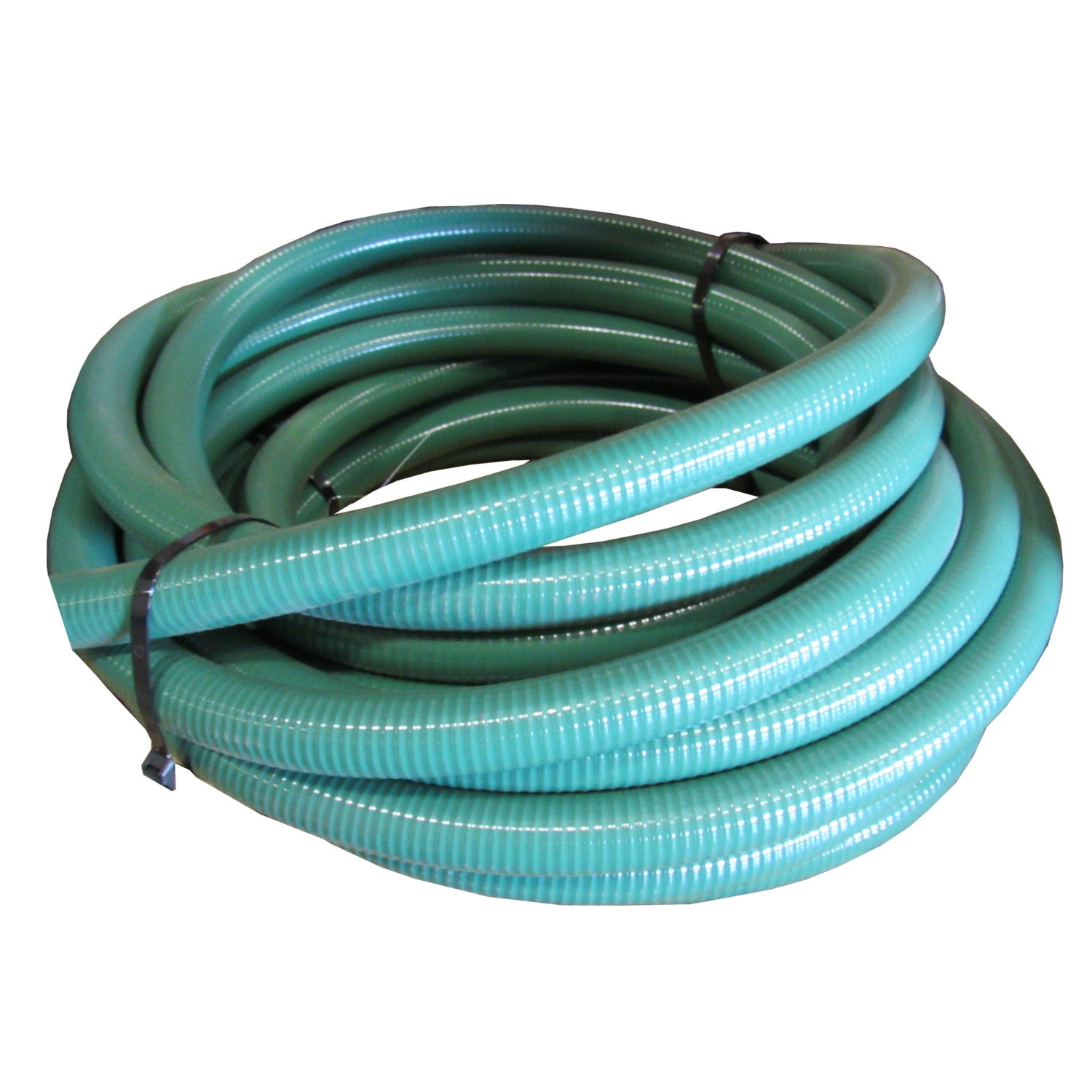

STANDARD DUTY PVC SUCTION HOSE – 1 INCH
PVC suction hose for drain lines, irrigation, pumps, dewatering and standard duty water suction.
Constructed of PVC tube with rigid PVC helix.
Service Temperature: -4°F to 150°F
2.76″ Bend Radius
Specifications:
| Inside Diameter | Outside Diameter | Working Pressure | Vacuum Rating | Weight (lbs/ft.) |
| 1 Inch | 1.26 Inch |
75 psi at 68°F 50 psi at 104°F |
29 in. Hg at 68°F |
.26 |
| 1-1/4 Inch | 1.56 Inch |
75 psi at 68°F 50 psi at 104°F |
29 in. Hg at 68°F |
.35 |
| 1-1/2 Inch | 1.83 Inch |
75 psi at 68°F 50 psi at 104°F |
29 in. Hg at 68°F |
.48 |
| 2 Inch | 2.32 Inch |
75 psi at 68°F 50 psi at 104°F |
29 in. Hg at 68°F |
.66 |
Standard bundle length is 100 ft, but PRM can provided a custom length of hose in 10 foot increments, Contact PRM for questions: 888-873-2848.
