Description
Features
– 3/8″ quick connect fittings- heavy duty mounting brackets
These systems are for the supplemental treatment of disinfected drinking water which has been treated or other drinking water which has been tested and deemed acceptable for human consumption by the state or local health agency having jurisdiction. These systems are designed to reduce normally occurring non-pathogenic nuisance organisms and is not intended for the treatment of contaminated water. The contaminants and other substances reduced by this water treatment device are not necessarily in your water. In addition, the presence of certain contaminants in your drinking water does not necessarily pose a health risk.
Specifications & Performance

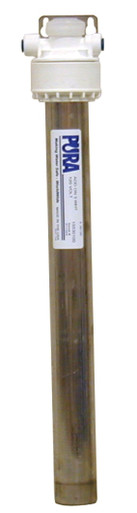

– Model: UV ADDON-3
– of Sumps: 1
– Sump Type: 304SS
– Sump 1 Content: UV
– Lamp : 20
– Power Used: 22 Watts
– Voltage: 115 VAC (220 VAC option is part number 15540200)
– Flow Rate: 3 GPM
– Dimensions: 22.5″ x 4″ x 3.5″
– Shipping Weight: 7 lbs
– Inlet/Outlet Size: 3/8″ Quick Connect
Feed Water Supply
– Feed Water Pressure: 20-75 PSI (Must not exceed 75)
– Feed Water Temperature: 38° – 106° F
– pH Range: 6.5-9.5
– Total Dissolved Solids: <1500 mg/L
– Total Suspended Solids: <10 mg/L
– Turbidity: <5 NTU
– Hardness: <120 (7 GPG)
– Iron: <0.3 mg/L
– Manganese: <0.05 mg/L
