Description

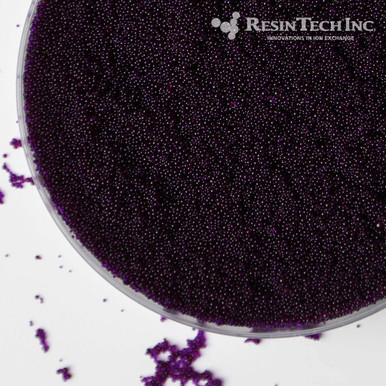

ResinTech CG8-H-ID is a hydrogen form 8% crosslinked gel strong acid cation resin. CG8-H-ID is dyed with a permanent purple dye that changes from purple to yellow as the resin exhausts. CG8-H-ID is intended for use anywhere that a visual indication or resin exhaustion is desired.
Features & Benefits – Color Indication Resin: Color changes from purple to yellow as resin exhausts from hydrogen form, providing a simple visual indication of depletion. The dye us permanent and does not wash out. The purple dye is stable through the full pH range.
– Cation Conductivity: CG8-H-ID is ideal for use in cation conductivity columns where the removal of ammonia, amines and other cations allows a more sensitive measurement of the conductivity being contributed by the anions that are present
– Optimized Particle Size For Use In Cartridges: Particle size provides optimum performance in cartridges. CG8-H-ID is intended for point-of-use cation conductivity cartridge and for other single bed and mixed bed applications where a visible indication of resin exhaustion is desired.
Physical Properties – Polymer Structure: Styrene/DVB – Polymer Type: Gel – Functional Group: Sulfonic Acid – Physical Form: Spherical Beads – Ionic Form as Shipped: Hydrogem – Column Capacity:>1.8 meq/mL – Water Retention: 47 to 56 percent – Approximate Shipping Weight: 50 lbs per cu. ft. – Screen Size Distribution (US Mesh): 16 to 50 – Maximum Fines Content (<50 mesh): 1% – Minimum Sphericity: 85% – Uniform Coefficient: 1.6 approx. – Resin Color: Purple
Suggested Operating Conditions – Maximum Continuous Temperature: 190°F – Maximum Pressure Loss: 25 psi – Service Flow Rate: 1 to 10 gpm per cubic foot
