Description

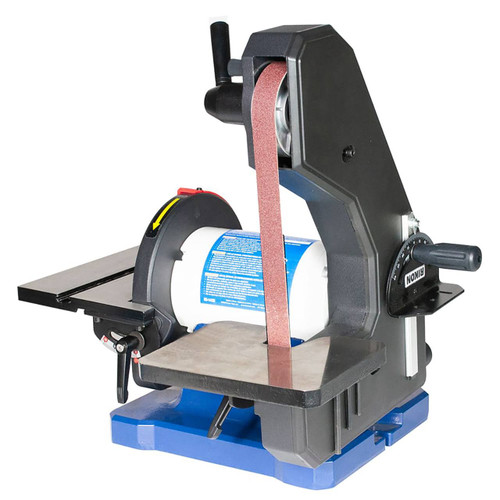

A powerful combination machine for larger surfacing projects. Its scaled-up design with cast iron base frame and large tables are made for heavy duty work. Large handles make adjusting table angles easy, and the re-designed belt adjustment system makes belt tracking and belt changes easy. Mfr.’s 5-year limited warranty.
Motor Horsepower: 3/4 HP
Motor Amps: 5
Motor: 120V, 60 Hz
Disc Table Size: 10-3/8″ x 5-7/8″
Belt Table Size: 7-7/8″ x 5-7/8″
Tables Tilt: 0° – 45°
Miter Gauge Slot: 7/16″ x 1/4″
Belt Size: 1″ x 42″
Belt Speed: 3,265 SFPM
Disc Diameter: 8″ PSA
Disc Speed: 3,580 RPM
Overall Height: 19-1/2″
Overall Width: 20-1/2″
Overall Depth: 18-1/2″
Overall Base Size: 11-13/16″ x 10-5/8″
Dust Ports: 1-1/2″ OD x 1-9/16″ ID
Weight: 52 lbs.
Includes
miter gauge
