Description

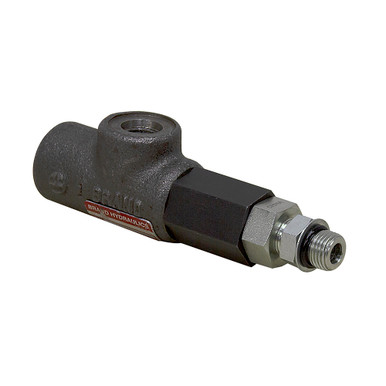

PILOT OPERATED CHECK VALVE
Brand new, BRAND model PC6C pilot check valve. In one direction oil opens a check valve and passes through the valve and into a cylinder. As the check valve closes the oil is positively trapped in the cylinder with a check ball valve. Applying pilot pressure to the pilot port of this valve moves a piston stem against the ball to push the check ball off its seat thus allowing the oil to leave the cylinder. The PC is intended to be a positive safety check, it is not intended to be a metering or counter balance valve.
SPECIFICATIONS
- Manufacturer BRAND
- Model Number PC6C
- Cylinder Port SAE 6 male
- Pump Port SAE 6 female
- Pilot Port SAE 6 female
- Max. Pressure 3000 psi
- Max. Flow 8 GPM
- Pilot Ratio 3.2:1
- Size 5.25″ x 1.625″ x 1.25″
- Shpg 2 lbs.
