Description
Description and Use
Serv-A-Pure’s deionization tanks remove all total dissolved solids from the water fed to the DI tank. The water produced by Serv-A-Pures DI tanks are an excellent use for a spot-free car and RV wash, window cleaning, humidifcation units, laboratory glass washing and general DI water usage.
– Comes pre-filled with MasterCarb Bituminous Acid Washed Carbon, 1 Cubic Foot, 12 x 40 Mesh- Helps to reduce Chlorine, Organics, and TOC Levels

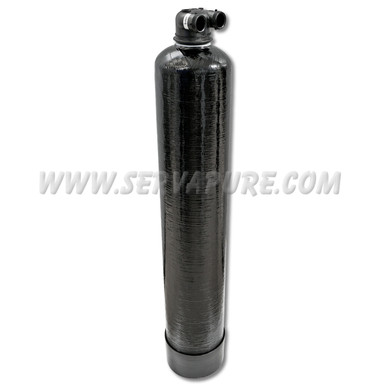

Specifications: – Tank Size: 8″ x 44″ – Volume: 1.0 cubic foot- Tank Head: Clack C1190- In/Out Size: Clack CL07S-PVC 3/4″ NPT Fittings (other Clack tail pieces can be purchased separatley to get you a different connection size)- Media Used: Bituminous Acid Washed Carbon, MasterCarb, 1 Cubic Foot, 12 x 40 Mesh- Weight: 94 Pounds
Capacities
Activated Carbon tanks should be replaced between every 6-12 months, and should not exceed 365 days after being installed, regardless of usage.
Operating Conditions – Service Flow Rate: Up to 5.0 GPM- Max Pressure: 125 PSI- Max Temperature: 120°F- pH Range: 1 to 14- Wetted Materials – Liner: Polyethylene – Head: Polypropylene – Fittings: Polypropylene – O-Rings: Buna-N – Drop Pipe: ABS
Typical Uses
– Chlorine Reduction- Organic Reduction- TOC Reduction
Typical Connection Options
– Serv-A-Pure Industrial Tanks come with the Clack C1190 head along with the CL07S-PVC straight 3/4″ MPT fittings. There are many other Clack tail piece options that would work with this tank/head combination. Here are some other options you could add to your order if you prefer a different connection type:- 3/4″ x 1″ PVC Solvent Elbow: CL0710-PVC– 3/4″ John Guest Elbow: CL07-JG– 3/4″ FPT Elbow: WP90-GHT– 1″ MPT Elbow: CL10-PVC
