Description

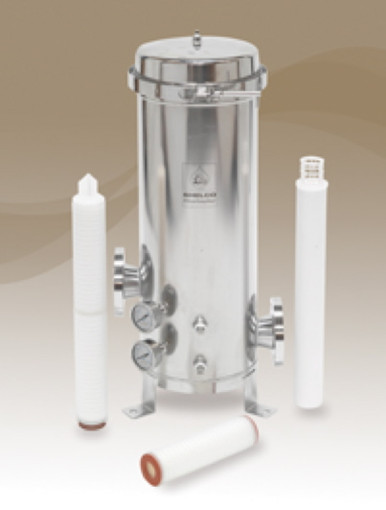

Shelco’s MicroVantage High Purity Housings are a premium quality filter housing loaded with standard features for high purity applications. These housings are competitively priced for exceptional value. HPI housings come standard with an electro-polished finish that provides maximum cleanliness and corrosion resistance.
Feature
– Uses (7) 2-1/2″ x 30″ filters
– 316L stainless steel construction with electro-polished finish for maximum durability and corrosion resistance
– Available with two closure options:
– V-Band clamp closure for quick and easy cartridge change outs
– Swing bolt closure for secure sealing
– Universal seat for either 222 flat/fin or double open-ended (DOE) style cartridges (226 style connectors are optional)
– Adjustable top plate accepts variable length cartridges
– Gauge ports with stainless steel liquid pressure gauges (0-200 psi) provide easy monitoring for optimal system maintenance
– Raised face flanges for rugged connections
– Mounting legs provide secure installation
Applications
– Water – Chemicals- Food & Beverage – Electronics- Oils/Gas – Pulp & Paper- Coolants – Inks/Paints/Coatings
– Power – Desalination
Specifications
– Flow Rate: 157 GPM
– Maximum Cartridge Diameter: 2-3/4″
– of Filters: (7) 2-1/2″ x 30″
– Inlet/Outlet: 2″ RF Flanges
– Max Operating Pressure: 150 PSI @ 300°F
– Drain Port: 1/2″ FNPT
– Vent Port: 1/4″ FNPT (4HPI – 7HPI) 1/2″ NPT (12HPI – 21HPI)
– Materials of Construction:
– Head/Shell/Connections: 316L SS Electro-polished
– Closure:
– Clamp: 304L SS
– Swing Bolts: Zinc Plated Steel
– Gaskets: EPR FDA Grade (Optional: Buna, Silicone, Teflon Encapsulated Silicone, Viton)
– Cartridge Type: 222 or DOE (226 optional)
