Description

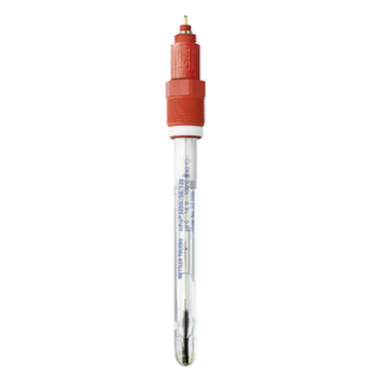

Specifications – pH Sensor InPro3253i/SG/120
| ISM (Digital) or Analog | ISM (Digital) |
| pH Sensing Technology | Steam Sterilizable Glass Membrane (A41) |
| pH Range | 0 – 12 |
| Reference System | Pre-pressurized liquid electrolyte, ceramic diaphragm, Argenthal cartridge with silver-ion trap |
| Operating Temperature (Fahrenheit) | 32 °F – 212 °F |
| Operating Temperature (Celsius) | 0 °C – 100 °C |
| Cable Connector | K8S |
| Process Connection | Pg 13.5 Thread |
| Sterilizable/Autoclavable | Yes |
| Sensor Length | 120 mm |
| Certificates & Approvals | CE METTLER TOLEDO Quality Certificate FM: IS Cl. I, II, III, Div 1, GR ABCDEFG/T6 EHEDG ATEX/IECEx: Ex ia IIC T6/T5/T4/T3 Ga/Gb PED |
| Operating Pressure (Bar) | 0 to 4 barg |
| Model Family | InPro3250(i) |
| Temperature Sensor | Digital |
| Measurement Parameter | pH ORP/Redox |
| Shaft Material | Glass |
| Operating Pressure (PSI) | 0 to 58 psig |
| Solution Ground/Redox Metal | Platinum |
| Refillable Electrolyte | No |
| Hazardous Area Approvals | Yes |
| Primary Media/Application | Pharmaceutical/Life Science Production |
| Hygienic/Biocompatibility Approvals | Yes |
| Material Number(s) | 52005377 |
