Description

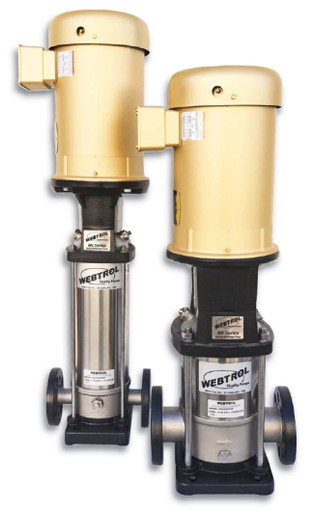

– This series of vertical multistage booster pumps offer technically advanced designs to meet market demands including hot water options.
– The NV series of pump replaces the older V series pumps offered by Webtrol. For cross referencing options please see the “Old V Series Vs NV Series” document in the data sheet tab below.
– Pump bases and flange sizes allow it to be a drop in replacement for similar competitors models
Features/Benefits
– In-Line, space saving design, with suction on discharge on the same place allowing the pump to be installed easily in linear piping systems
– Reliable, robust and maintenance free cartridge type mechanical seals are standard
– Available in various size and materials, the NV series pump is an excellent choice for commercial and industrial applications
– All wetted parts are constructed of high quality stainless steel. Standard with 304 SS, please contact us to ask about 316SS options
Applications
– Water Supply – Plants- Reverse Osmosis – Boiler Feed- Water Boosting – Hot & Cold Water- Washing Systems – Circulation- Fire Fighting – Irrigation- Water Treatment – Sprinkler Systems- Filtration – Heat Exchangers
Replaces Obsolete Webtrol Model/s: V10B7S-3T , V10B7S16-3TSpecifications
Webtrol Vertical Series Booster Pumps are available up to 600 GPM. Pressures to 380 PSI and temperatures up to 248°F
– HP: 1.5 HP
– Phase: 3 Phase
– Operating Range: 4-22 GPM
– Frame: 56C
– Suction/Discharge: 1.25″
– Max Working pressure: 362 PSI
